Connections
Male thread BSP-P / Female thread BSP-P • DIN EN ISO 228-1 / DIN EN ISO 228-1
Sizes
DN8 (¼″) • DN10 (⅜″) • DN15 (½″)
Pressure Range
0.5 to 70 bar*
Temperature Range
-60°C to 225°C*
* Dependent on version
TÜV • UKCA • EAC • TS

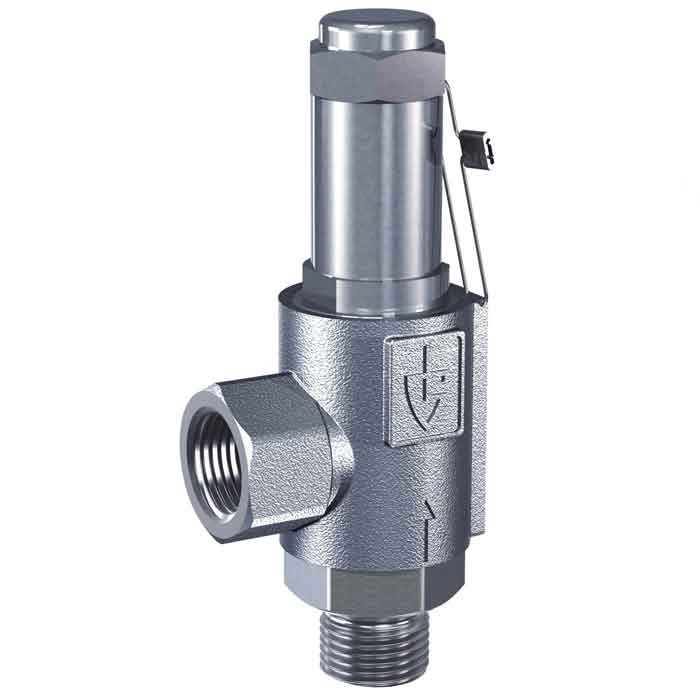

The consistent expansion of this series with smaller nominal diameters now also enables the safety valve to be optimised and thus economically sized for smaller blow-off quantities. The proven range of variants allows the valve to be used for different media in different aggregation states. This series is well-suited and frequently used in measurement and control technology systems and gas mixing stations, for example.
