Connections
Female thread BSP-P / Female thread BSP-P • DIN EN ISO 228-1 / DIN EN ISO 228-1
Sizes
DN8 (¼″) • DN10 (⅜″) • DN15 (½″) • DN20 (¾″) • DN25 (1″) • DN32 (1¼″) • DN40 (1½″) • DN50 (2″)
Pressure Range
Inlet : up to 60 bar*
Adjustable Outlet : 0.5 to 50 bar*
Temperature Range
-40°C to 120°C*
* Dependent on version

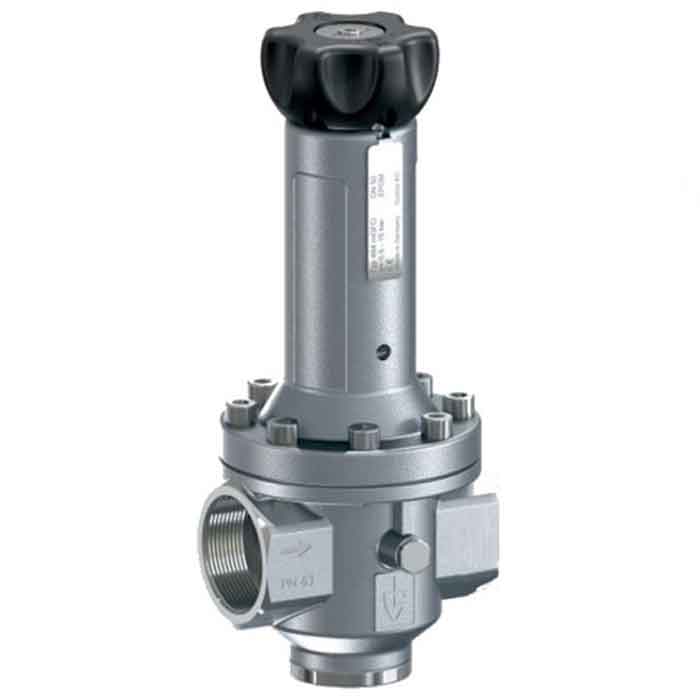

This diaphragm or piston pressure reducing valve made of stainless steel, with sleeve connections for hydrogen applications, is characterised above all by its particularly high flow rates and its low pressure loss, even with high power requirements. The pressure is set without tools using the ergonomically shaped handwheel. The extremely small pressure drop in the control operating range makes this high-performance pressure regulator unrivalled.
